Diagram Styles

Previous pageReturn to chapter overviewNext page



Diagram Styles



The diagram style defines the background colors, fonts, text colors, shape colors and styles, arrow line styles and widths, and similar visual characteristics. To change styles, open the Style Chooser from the View menu.



  diagram07b





  diagram07



  diagram07a



Applying a Style

The currently active style appears in bold.

To apply a different style, choose another style from the Model Styles list and click "Apply".



Modifying Styles or Creating New Styles

To edit or rename an existing style, select it and click Edit.

To create a new style, select an existing style and click Duplicate. A copy will appear; select the copy and click Edit to rename and modify.



Style Libraries

There are two libraries of styles, My Styles and Model Styles.

My Styles are stored centrally and are available anytime you are working in Ventity.

Model Styles are stored with the model. Only Model Styles may be applied to a model.

To copy a style from one library to the other, select it and use the up and down arrow buttons.



Default Styles

Some styles, such as Basic and Black and White (pictured below), ship with Ventity. These styles are identified in italics in the My Styles library. They may not be modified or deleted from My Styles, but they may be duplicated and the copy may be edited.



  diagrams3adiagrams3







Style Overrides

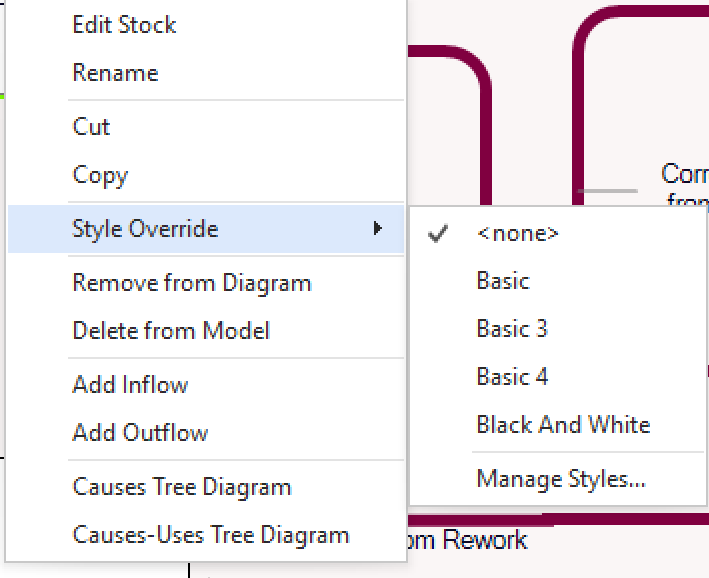

By default, all diagram elements are displayed using the settings from the selected style sheet.  Sometimes, it is useful to show certain elements in different colors that others of the same type.  This can be accomplished by selecting the element on the diagram and right-clicking.  Using the context menu you can apply a different style to the selected item.   If multiple items are selected, the new style will apply to all selected items.    If you subsequently make changes to the style definition, those changes will be reflected in the affected nodes and links.





Style Override Context
