<< Click to Display Table of Contents >> Navigation:  Simulating > Run Lists

A Run List is a set of one or more configurations for simulating the model.  Each configuration includes simulation time settings and input data sets for entity initialization and time series data.  When a Run List is executed, each Run Configuration line is processed in sequence.



To create a Run List, simply right click on Run Lists in the Model Overview.



Run Lists are created with a default name, which can be changed immediately.

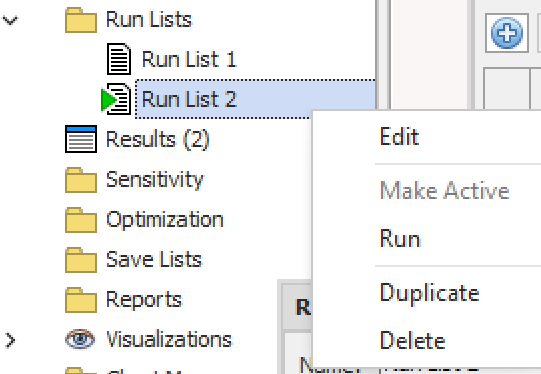

One Run List is always active.  The active run list is used when the green simulate button is pushed.  The active run list indicated by a small green arrow in the overview tree.  Five options are available:



1        Edit.   This opens the run configuration dialog.

2          Make Active.   Make this Run List the active run list.

3        Run.   Execute this run list and make it the active run list.

4        Duplicate the definition and create a new run list.   This makes it easier to make changes rather than force complete re-entry.

5        Delete the run list.
